Gazebo Tensile Structure

Gazebo tensile structures are lightweight, fabric-covered structures that provide shade, shelter, and aesthetic appeal to outdoor spaces. A gazebo tensile structure is a type of roof that uses a membrane held in place by cables to create a stable and flexible structure that can be used to cover a variety of areas, including gazebos:

• Stability: Tensile structures can remain stable even under severe tension and without compression.
• Flexibility: Tensile structures are flexible and can be modified over time.
• Durability: Tensile structures are strong enough to withstand severe weather and potential damage.
• Translucency: Tensile structures can allow natural light in while also providing light control.
• Ease of assembly: Tensile structures are pre-fabricated and can be dry-assembled.
• Demountability: Tensile structures are completely demountable and can be relocated if needed

Here's an overview:

Advantages

1. Lightweight and easy to install
2. Flexible design options (shapes, sizes, colors)
3. UV-resistant and waterproof fabrics
4. Energy-efficient (reduces heat gain)
5. Low maintenance and durable
6. Cost-effective (compared to traditional gazebos)
7. Portable and relocatable

Types

1. Hypar (hyperbolic paraboloid) gazebos
2. Cone-shaped gazebos
3. Dome-shaped gazebos
4. Umbrella-style gazebos
5. Sail-shaped gazebos
6. Tensioned membrane gazebos

Fabric Materials

1. PVC (polyvinyl chloride)
2. PTFE (polytetrafluoroethylene)
3. ETFE (ethylenetetrafluoroethylene)
4. Polyester pes
5. HDPE Knitted mesh fabrics

Frame Materials

1. Steel (galvanized or stainless)
2. Aluminum
3. Fiberglass
4. Wood (treated or untreated)

Design Considerations

1. Wind and snow loads
2. Structural stability
3. Material selection
4. Lighting and ventilation
5. Acoustics and insulation
6. Integration with existing structures
7. Drainage and water management

Applications

1. Residential outdoor spaces (backyards, patios)
2. Commercial outdoor spaces (restaurants, hotels)
3. Public parks and recreation areas
4. Event spaces (weddings, festivals)
5. Beachside and poolside areas

Key Components

1. Fabric membrane
2. Frame structure
3. Cables and tensioning system
4. Anchoring system
5. Foundation system (shallow or deep)

Case Studies

1. Dubai Mall Gazebo (UAE)
2. London Olympic Park Gazebo (UK)
3. Sydney Opera House Gazebo (Australia)
4. New York City High Line Gazebo (USA)
5. Singapore Botanic Gardens Gazebo (Singapore)

Gazebo tensile structures offer a unique combination of functionality, sustainability, and aesthetics, making them an attractive option for various outdoor spaces.

---

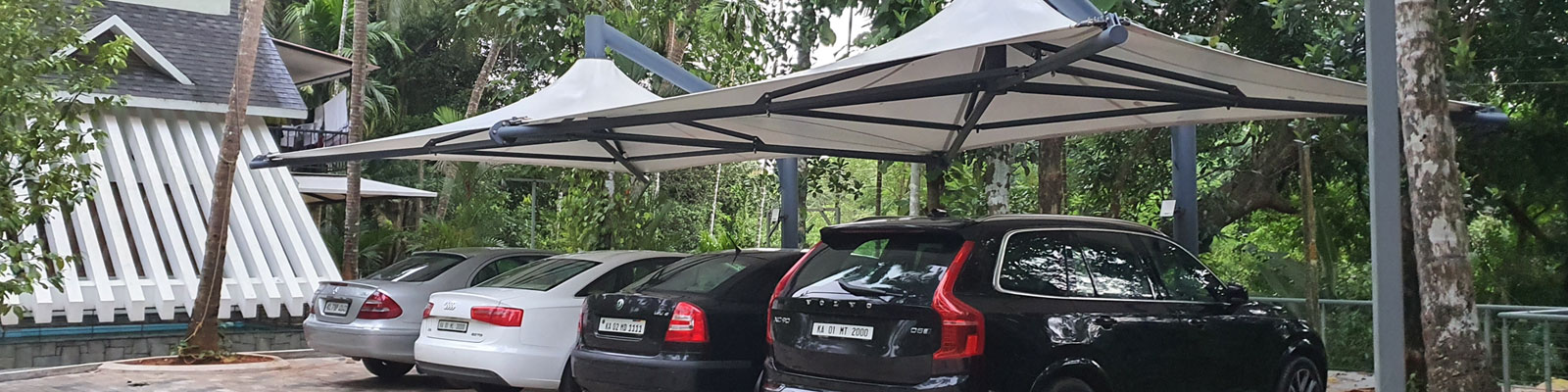

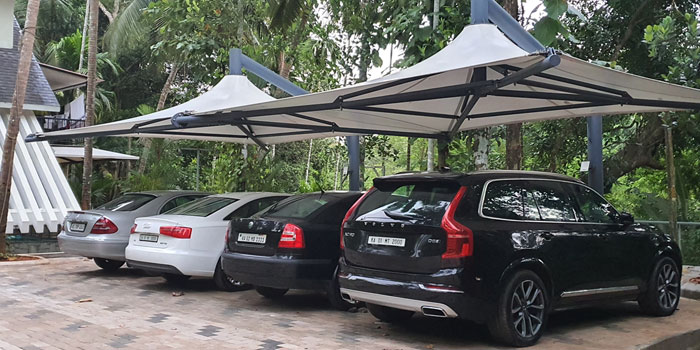

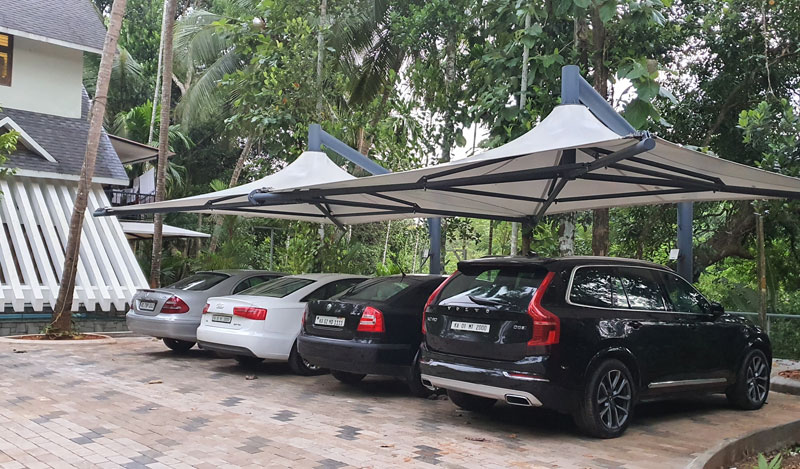

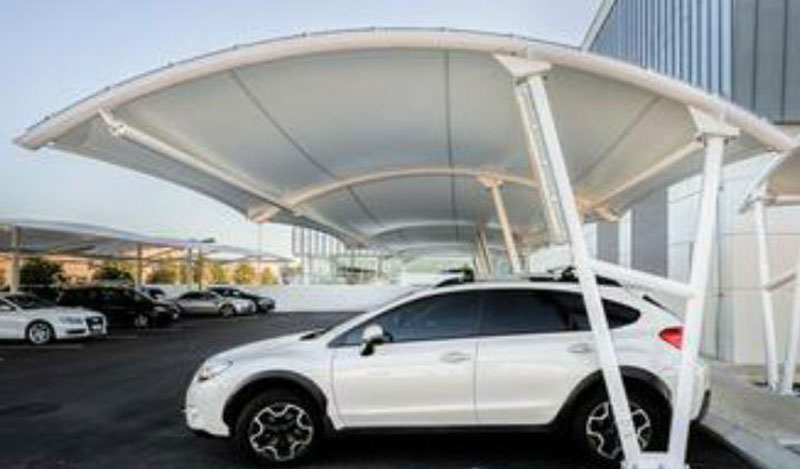

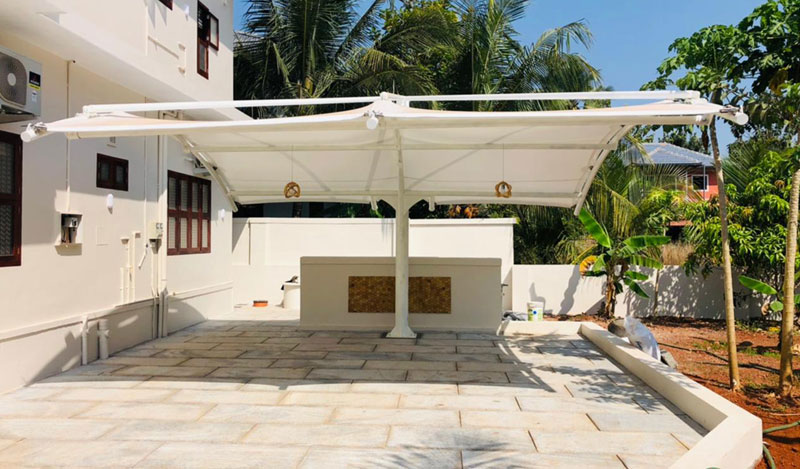

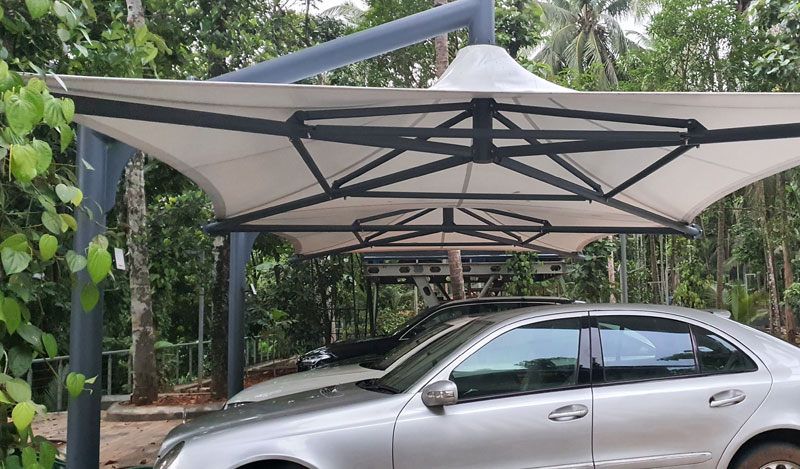

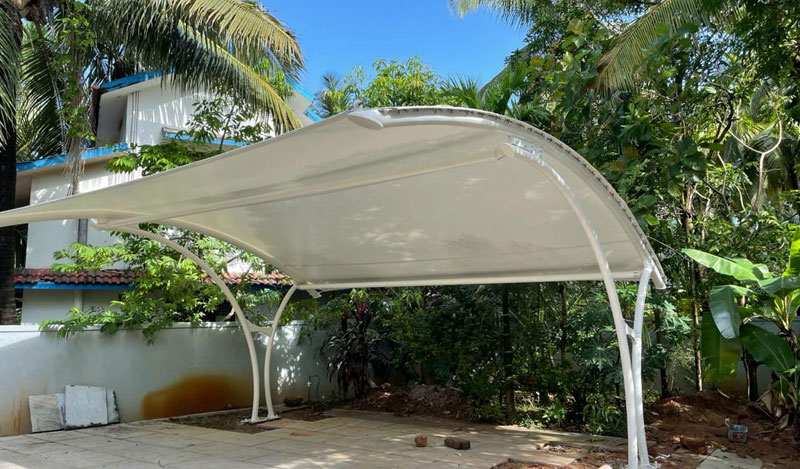

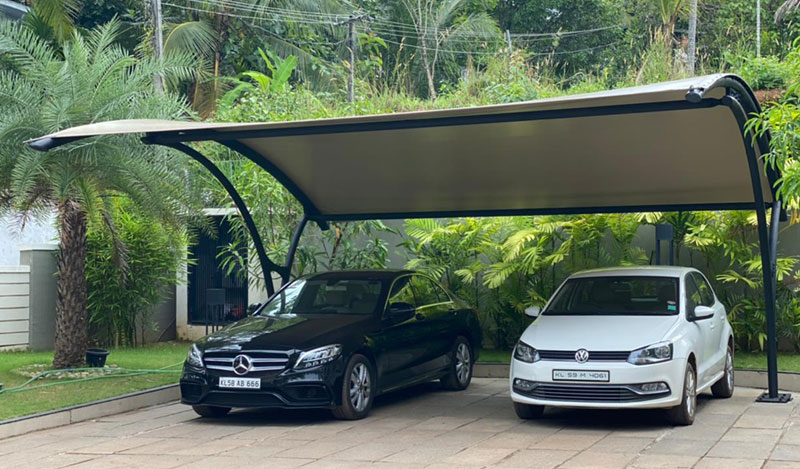

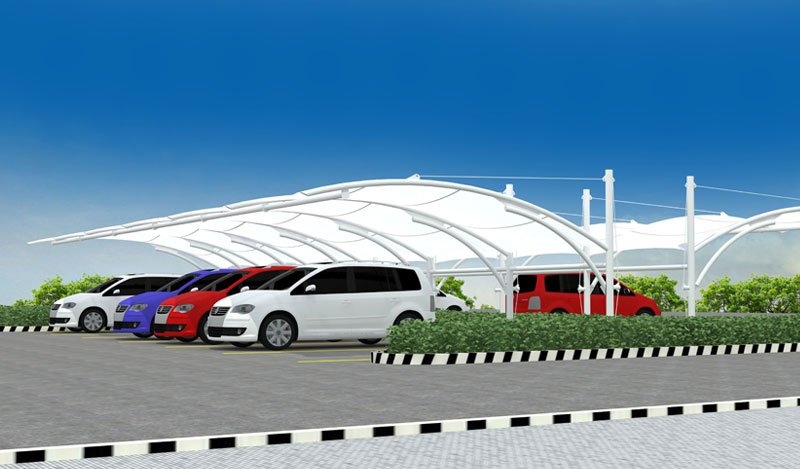

Project Gallery
