Cantilever Shade Structures

Cantilever tensile fabric shade structures provide innovative and functional solutions for sun protection. They are lightweight, flexible, and durable and can be used for a variety of purposes, including shading walkways and covering large stadium arenas. These structures can cover the length of a sports pitch without blocking fans' views of the action. These structures are made by stretching and tensioning a fabric, usually PVDF-coated polyvinyl chloride (PVC) fabrics or PTFE-coated glass fiber fabrics or ETFE or STFE single layer/multi-layers foils, over a steel framework. The tensioning provides structural support to the membrane. They are versatile, durable, and quick to install. They can be used in a variety of shapes and sizes and are often cost-effective.

Benefits

1. Unique architectural design
2. Sun protection and shade provision
3. Energy efficiency
4. Low maintenance
5. Flexibility in design and layout
6. Enhanced outdoor comfort

Types

1. Cantilevered fabric canopies
2. Tensile fabric awnings
3. Fabric-covered projections
4. Cable-supported fabric shades
5. Retractable fabric shades

Fabric Materials

1. ETFE (ethylenetetrafluoroethylene)
2. PTFE (polytetrafluoroethylene)
3. PVC (polyvinyl chloride)
4. Polyester
5. HDPE Knitted Fabrics.

Frame Materials

1. Steel (galvanized or stainless)
2. Aluminum
3. Fiberglass
4. Wood (treated or untreated)

Design Considerations

1. Site analysis and context
2. Climate and weather patterns
3. Material selection
4. Structural stability
5. Integration with existing structures
6. Tensioning and cable systems

Key Components

1. Fabric membrane
2. Frame structure
3. Cables and tensioning system
4. Anchoring system
5. Foundation system (shallow or deep)

Software for Design and Analysis

1. Autodesk Revit
2. Rhino and Grasshopper
3. SketchUp
4. STAAD
5. ANSYS
6. LS-DYNA
7. Technet Easy Software- membrane analysis
8. DlubalRstab Software – steel analysis

Industry Standards

1. ASTM (American Society for Testing and Materials)
2. ISO (International Organization for Standardization)
3. ASCE (American Society of Civil Engineers)
4. IFAI (Industrial Fabric Association International)
5. AISC (American Institute of Steel Construction)
6. Euro Code-03
7. IS Codes (Indian Standard Code) – BIS- Bureau of Indian Standards

Case Studies

1. Dubai Mall (UAE)
2. Gokulam Galleria Shopping Mall- Calicut (INDIA)
3. JLPL Falcon View Chandigarh (INDIA)

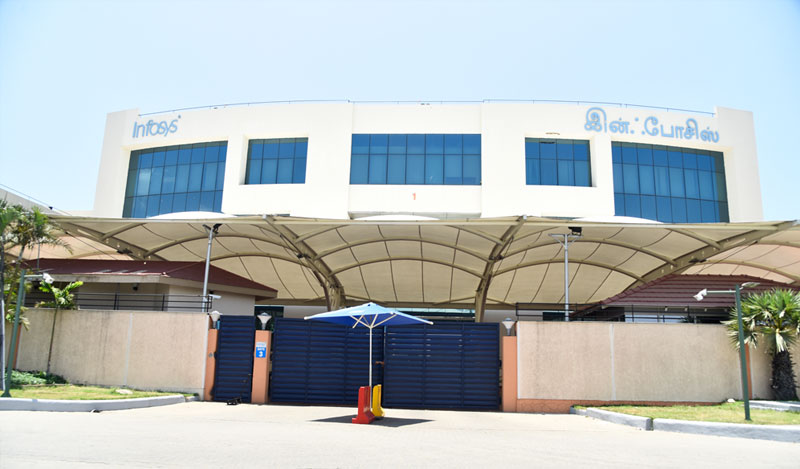

4. Infosys Sholinganallur -Chennai (INDIA)
5. My Town Kuala Lumpur (Malaysia)
6. DLF IT Park – Chennai (INDIA)
7. Singapore National Gallery
8. Amazon Spheres (USA)
9. Burj Khalifa (UAE)
10. Sydney Opera House (Australia)

---

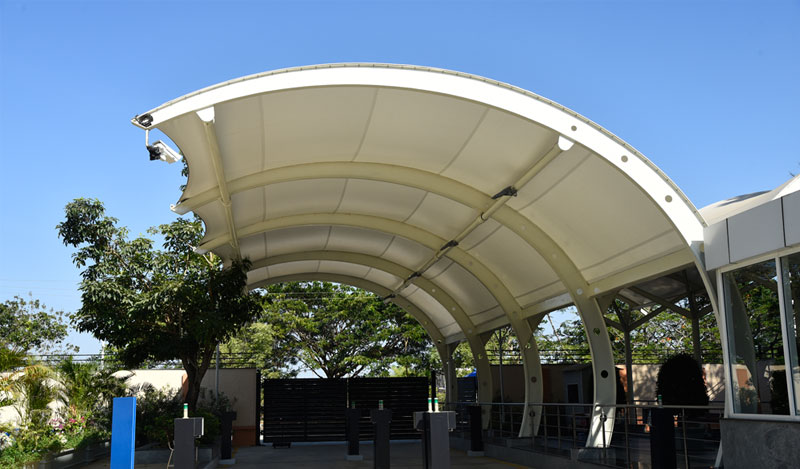

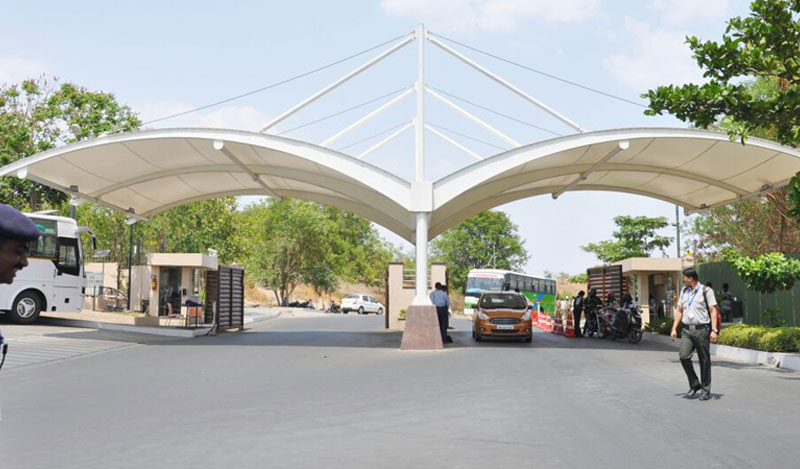

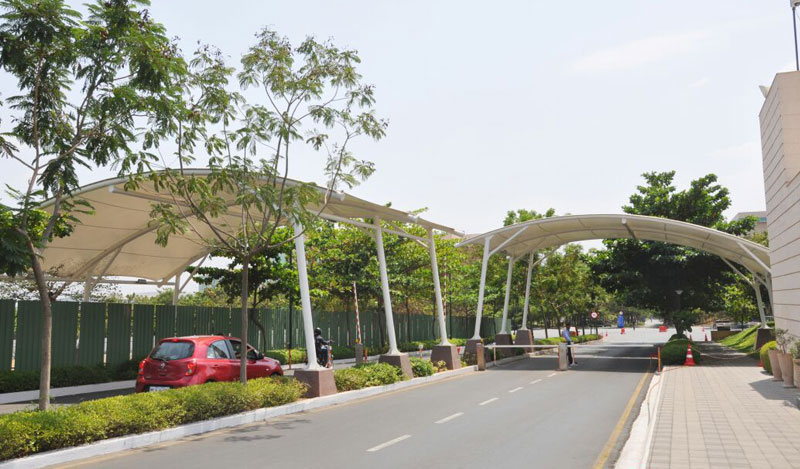

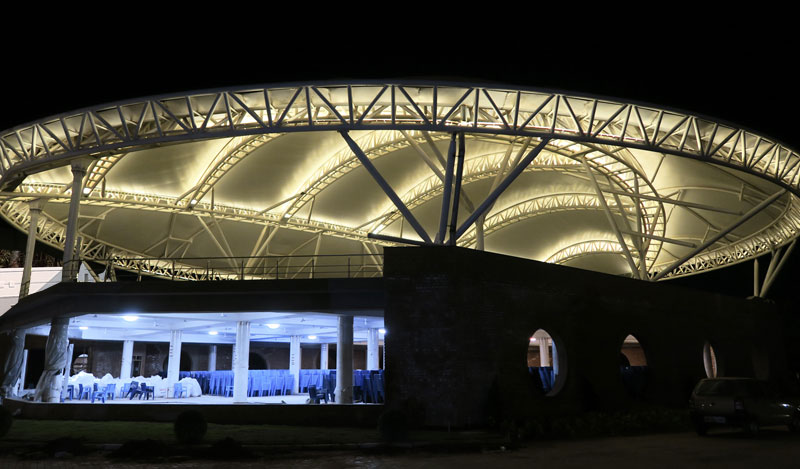

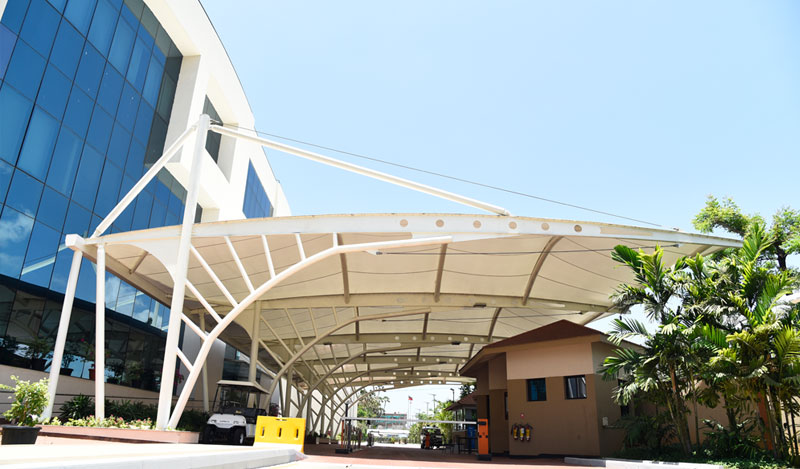

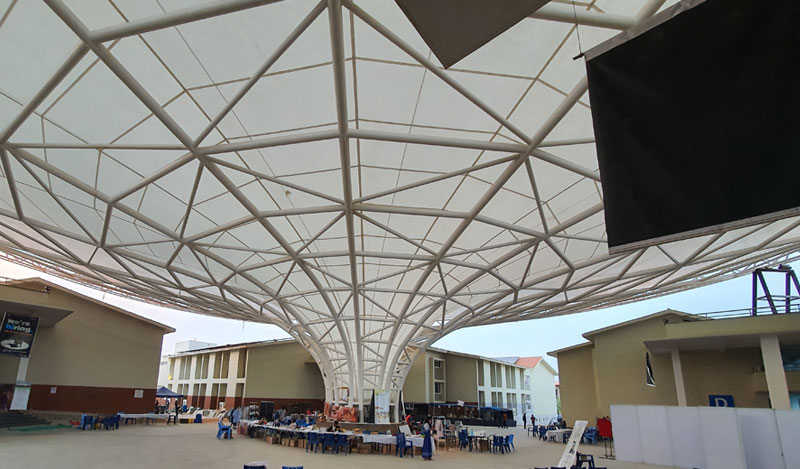

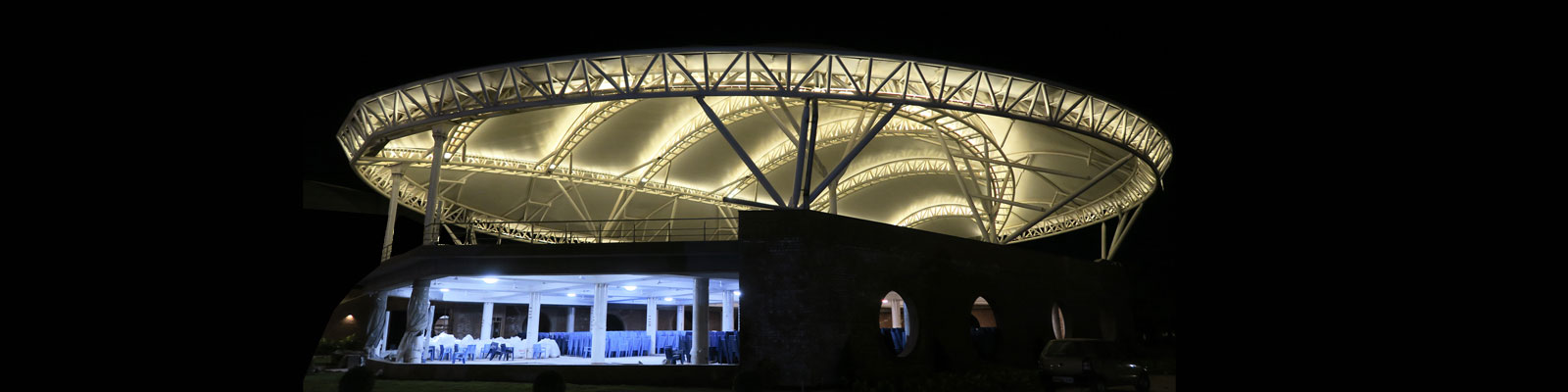

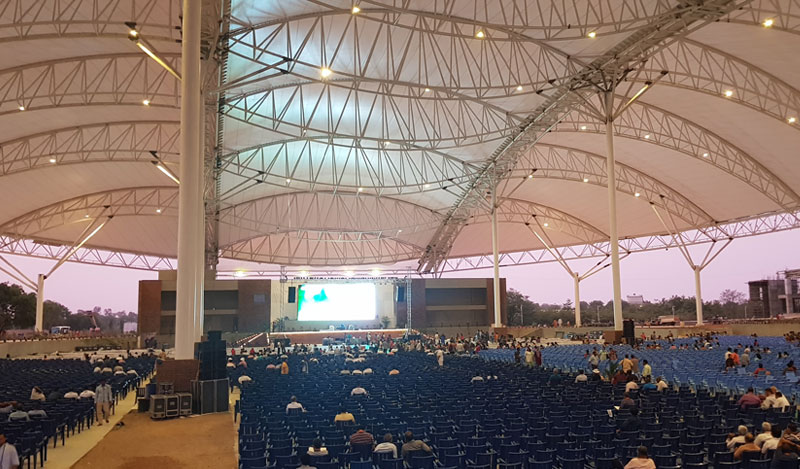

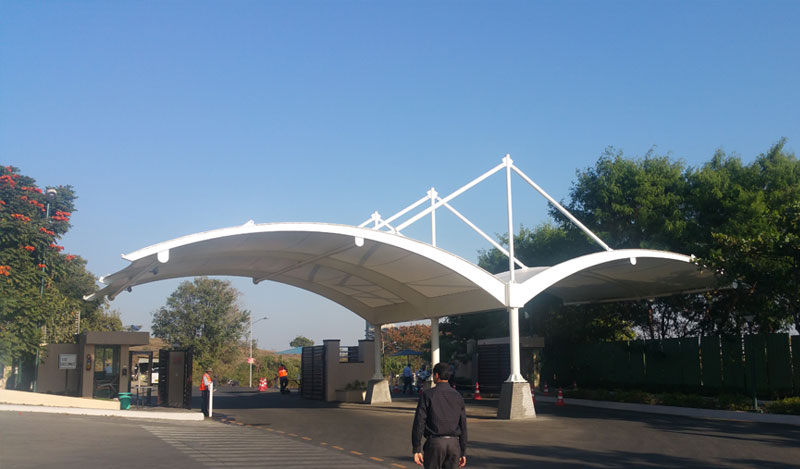

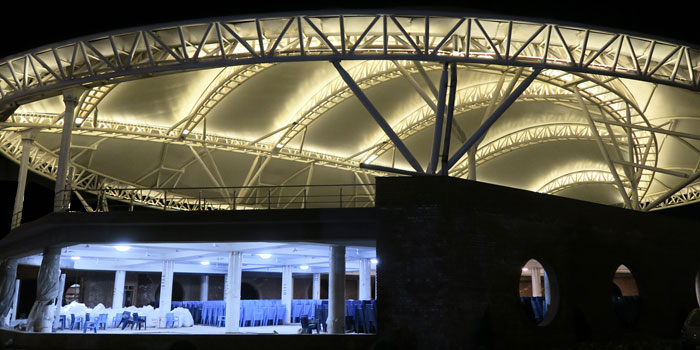

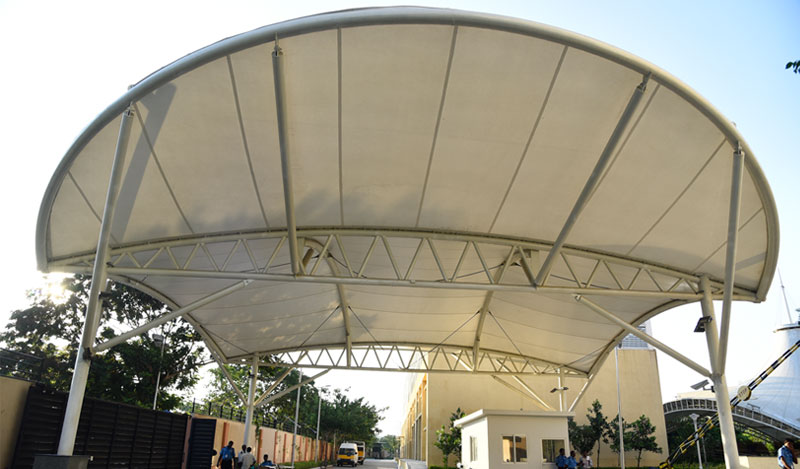

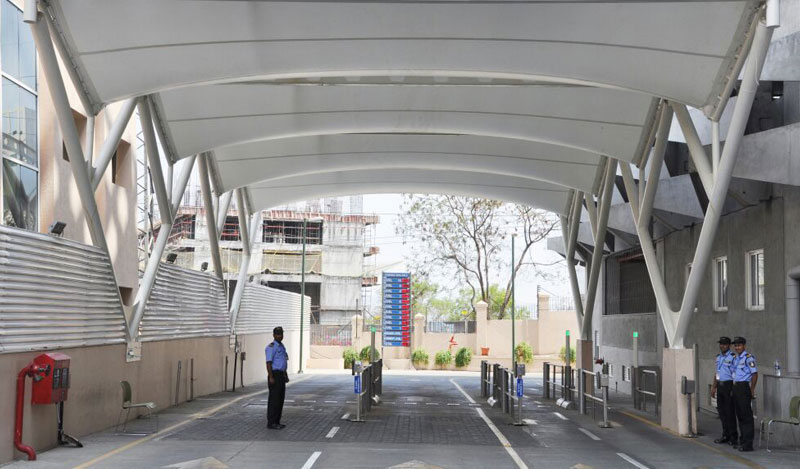

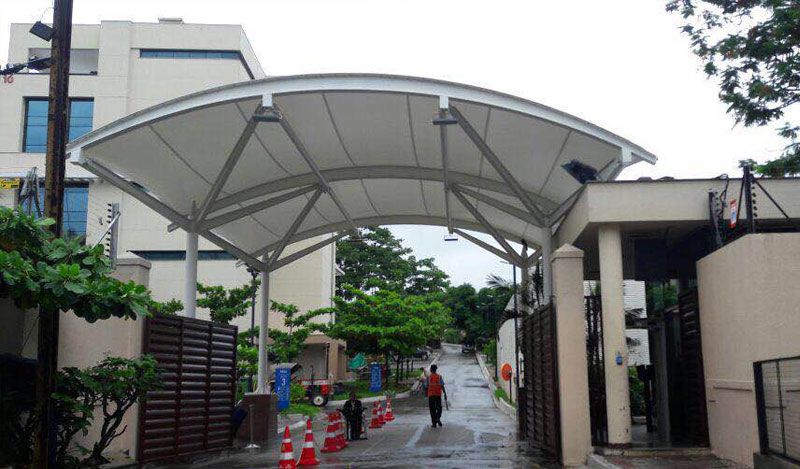

Project Gallery
