Auditorium Tensile Structures

Auditorium tensile structures are innovative, fabric-covered buildings that provide unique acoustic and aesthetic benefits.Auditorium tensile structures stand out as a fusion of functionality and aesthetic appeal. These creative designs not only provide expansive coverage for large gatherings but also offer a blend of versatility and elegance that traditional structures often lack.  Here's an overview:

Benefits

1. Unique acoustic properties (sound reflection and absorption)
2. Natural light and ventilation
3. Energy efficiency (reduced HVAC costs)
4. Flexibility in design and layout
5. Cost-effective (compared to traditional buildings)
6. Quick installation and construction
7. Low maintenance

Types

1. Tensioned membrane structures
2. Air-supported structures
3. Cable-net structures
4. Pneumatic structures
5. Fabric-covered frames

Fabric Materials

1. PVC (polyvinyl chloride)
2. PTFE (polytetrafluoroethylene)
3. ETFE (ethylenetetrafluoroethylene)
4. Polyester

Frame Materials

1. Steel (galvanized or stainless)
2. Aluminum
3. Fiberglass
4. Wood (treated or untreated)

Design Considerations

1. Acoustic performance
2. Structural stability
3. Material selection
4. Lighting and ventilation
5. Integration with existing structures
6. Seating layout and capacity
7. Accessibility and ADA compliance

Applications

1. Performing arts centers
2. Concert halls
3. Theaters
4. Lecture halls
5. Conference centers
6. Exhibition spaces
7. Worship centers

Key Components

1. Fabric membrane
2. Frame structure
3. Cables and tensioning system
4. Anchoring system
5. Foundation system (shallow or deep)

Software for Design and Analysis

1. Autodesk Revit
2. Rhino and Grasshopper
3. SketchUp
4. STAAD
5. ANSYS
6. LS-DYNA
7. Technet Easy Software- membrane analysis
8. DlubalRstab Software – steel analysis

Industry Standards:

1. ASTM (American Society for Testing and Materials)
2. ISO (International Organization for Standardization)
3. ASCE (American Society of Civil Engineers)
4. IFAI (Industrial Fabric Association International)
5. AISC (American Institute of Steel Construction)
6. Euro Code-03
7. IS Codes ( Indian Standard Code) – BIS- Bureau of Indian Standards

Case Studies

1. Sydney Opera House (Australia)
2. Guggenheim Museum (Spain)
3. Denver Art Museum (USA)
4. Dallas Cowboys Stadium (USA)
5. Singapore National Gallery (Singapore)

---

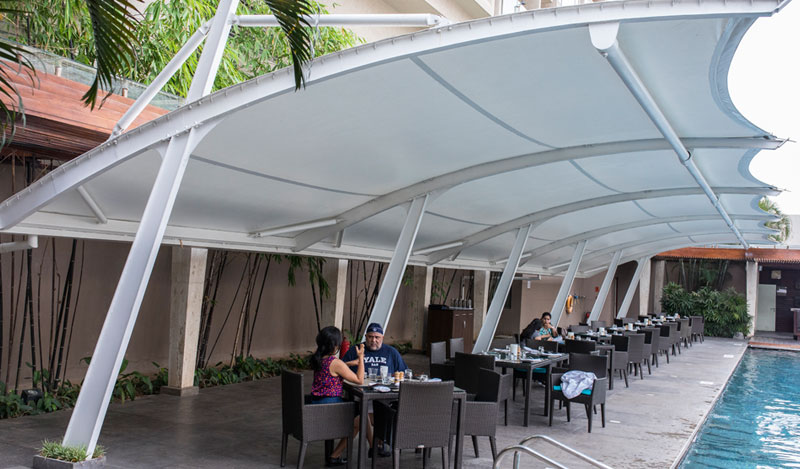

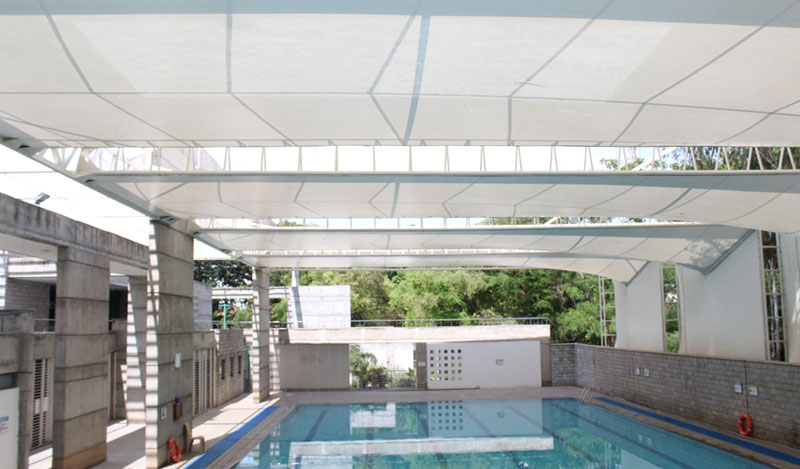

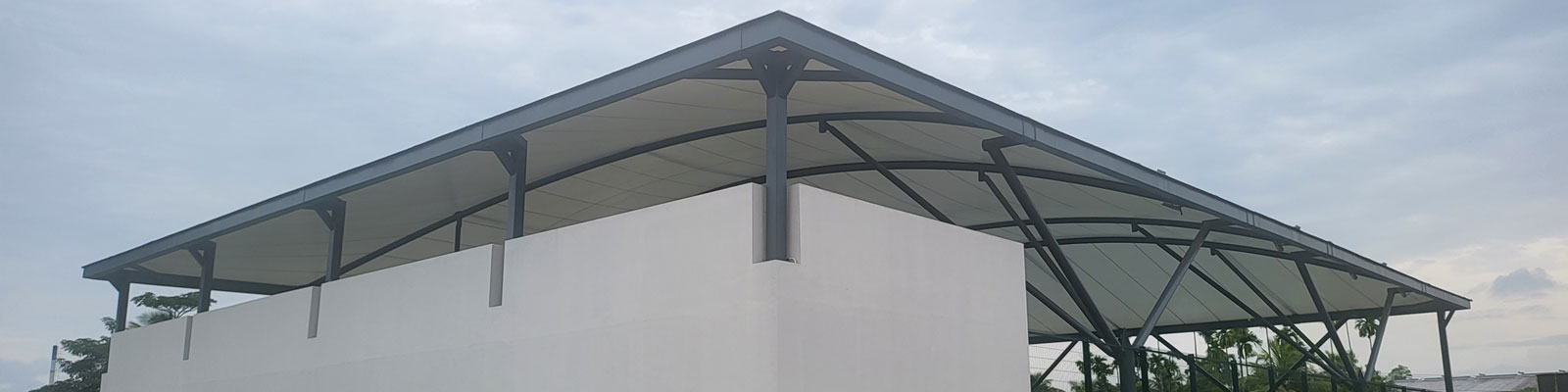

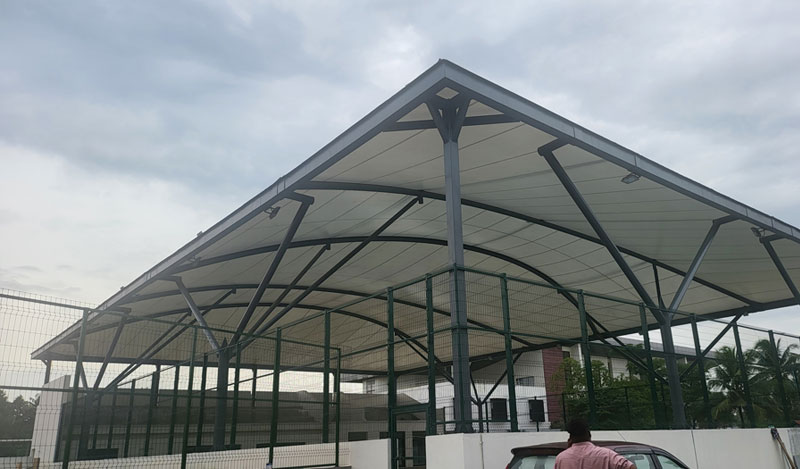

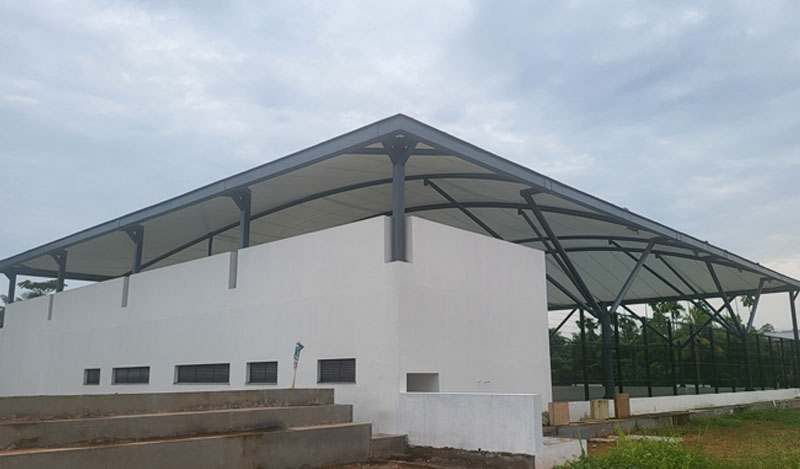

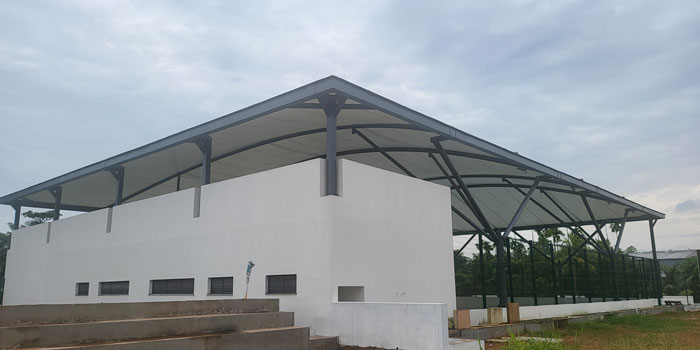

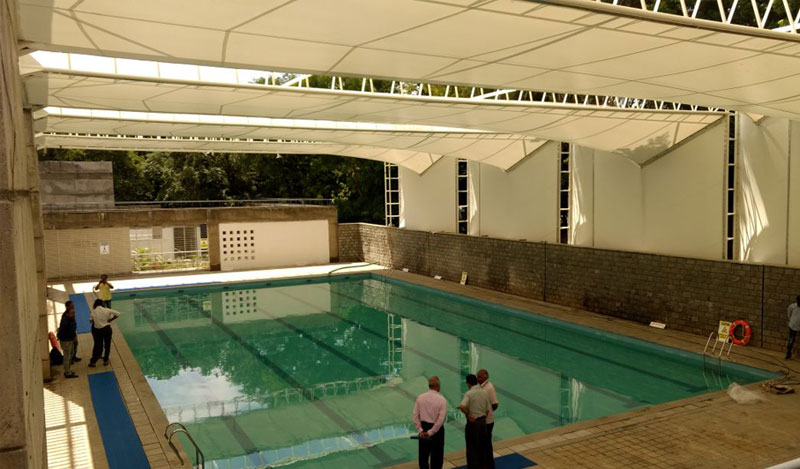

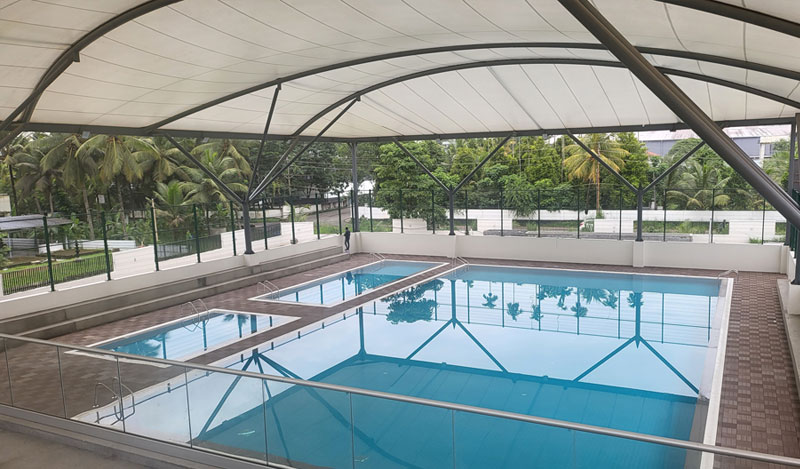

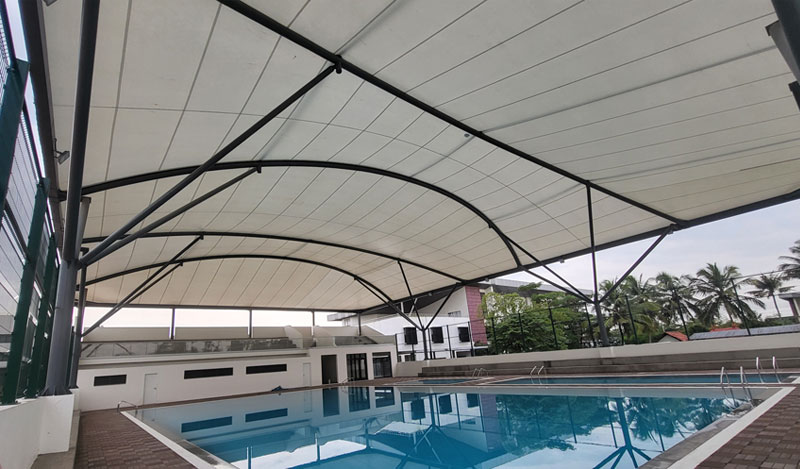

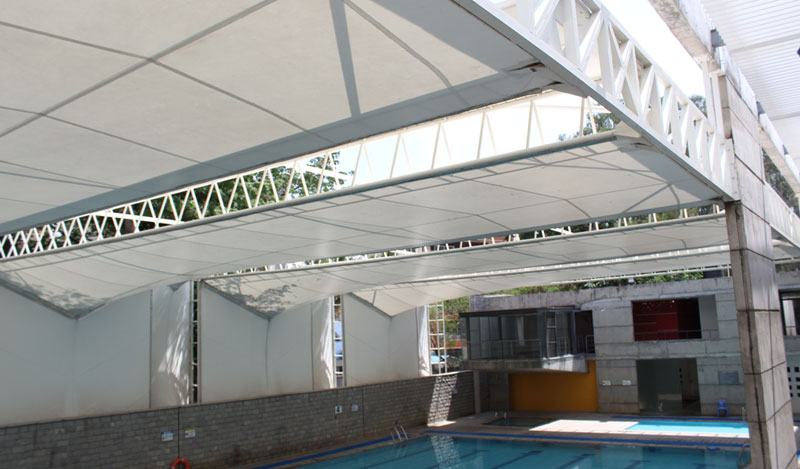

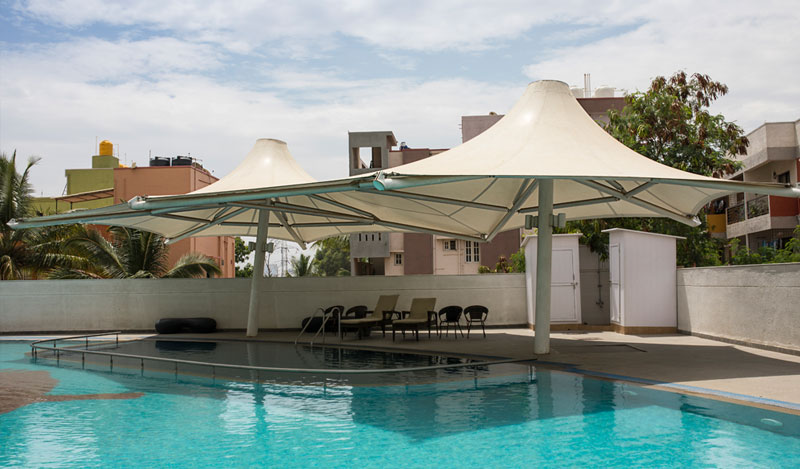

Project Gallery
